May. 2/2025 Small triangular bowl The triangular bowl I made in 2015 is the one that appears most often on my family's dining table. I made a smaller version of it that can serve a small amount of food like a small plate. |
 |
 |
|

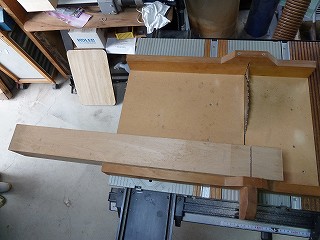

1.The material is 85mm square beech wood, which is cut to a length of 85mm and processed into a rectangular prism. |

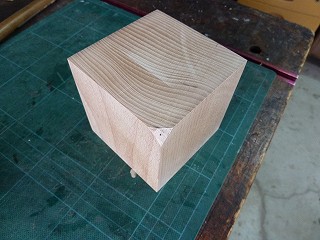

2.One point of the apex is cut off and processed so that it can be pushed by the rotation center of the tailstock. |
|
 |
 |
|

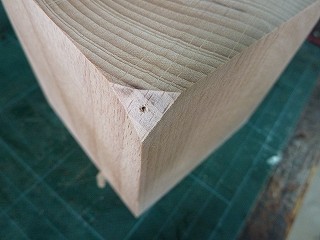

3.In this way, use an awl to make a depression where the peak was. |

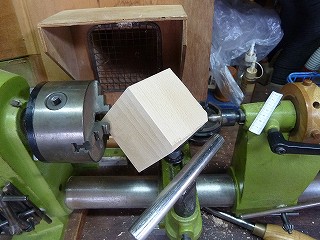

4.Grab it with a three-jaw chuck and press it with the tailstock to secure it. |
|
 |
 |
|
5.Turn the outside to make a grip and cut. |

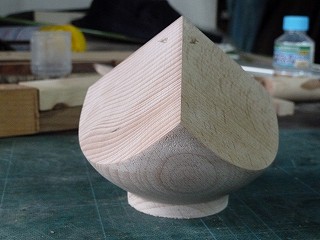

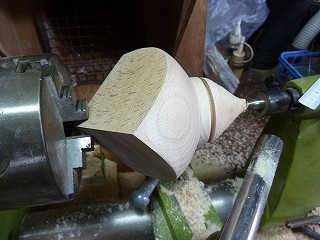

6.It will have a shape like this. |
|
 |
 |
|

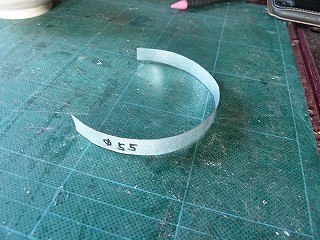

7.Since the gripping area would get scratched if it was grabbed directly, a protective ring was made by bending a 0.6 mm thick tin plate into a circle. |

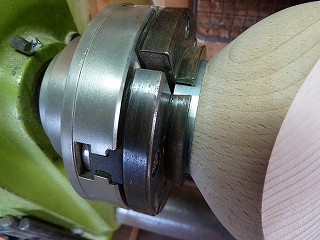

8.Insert a protective ring and hold with a Bantam chuck. |
|
 |
 |
|

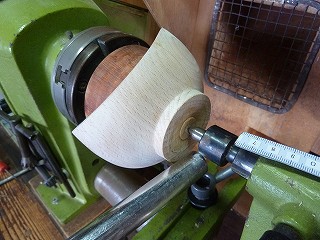

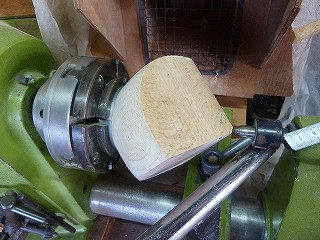

9.Press the opposite vertex with the turning center and begin turning. |

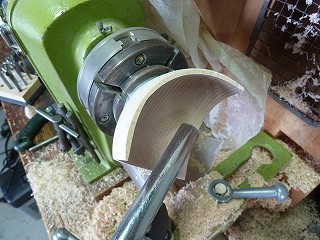

10.Continue turning until the thickness is about 4mm. It is important to regularly sharpen the gouge to keep it sharp. |
|
 |
 |
|

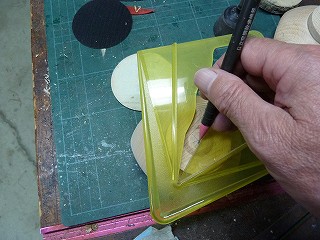

11.Mark the center point on the leg with a center marker. |
12.While pressing the center marker with the tail stock, grasp it with the vacuum chuck. |
|
 |
 |
|

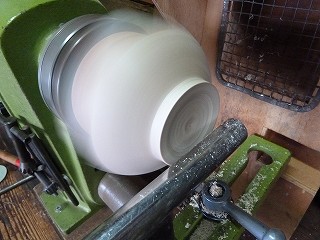

13.Turning the back of the leg. |

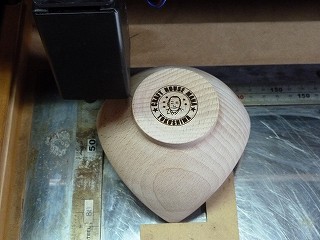

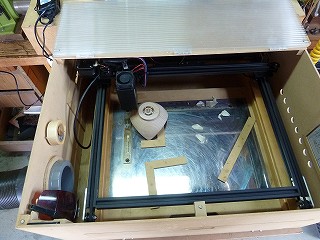

14.Engrav the logo mark with a laser machine. |
|
 |
 |
|
15.It includes an illustration of my face. |

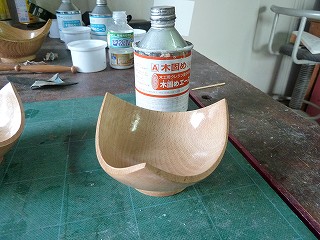

16.Finished by applying ``KIGATAME Ace'' three times. |
|
 |
||

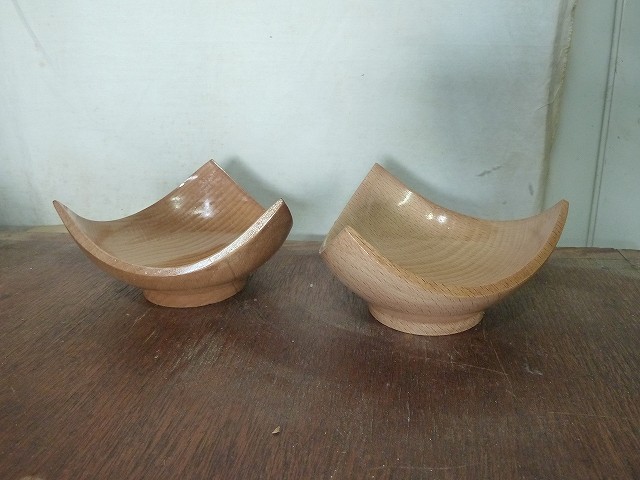

I made two. |
||
 |
||

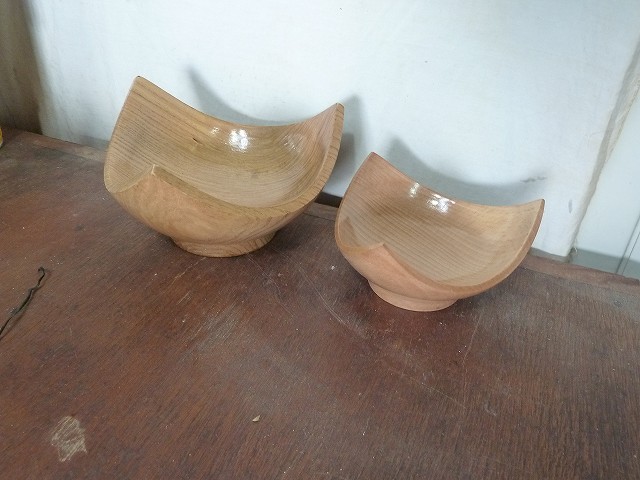

Comparison with the bowl made in 2015. The blank in 2015 was a 110mm rectangular prism, while this one is an 85mm rectangular prism. |
||
